| 1. General |
| System: |

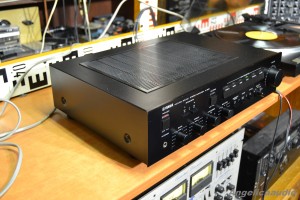

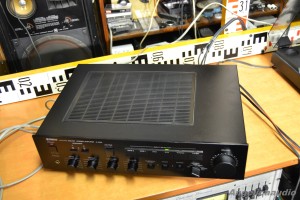

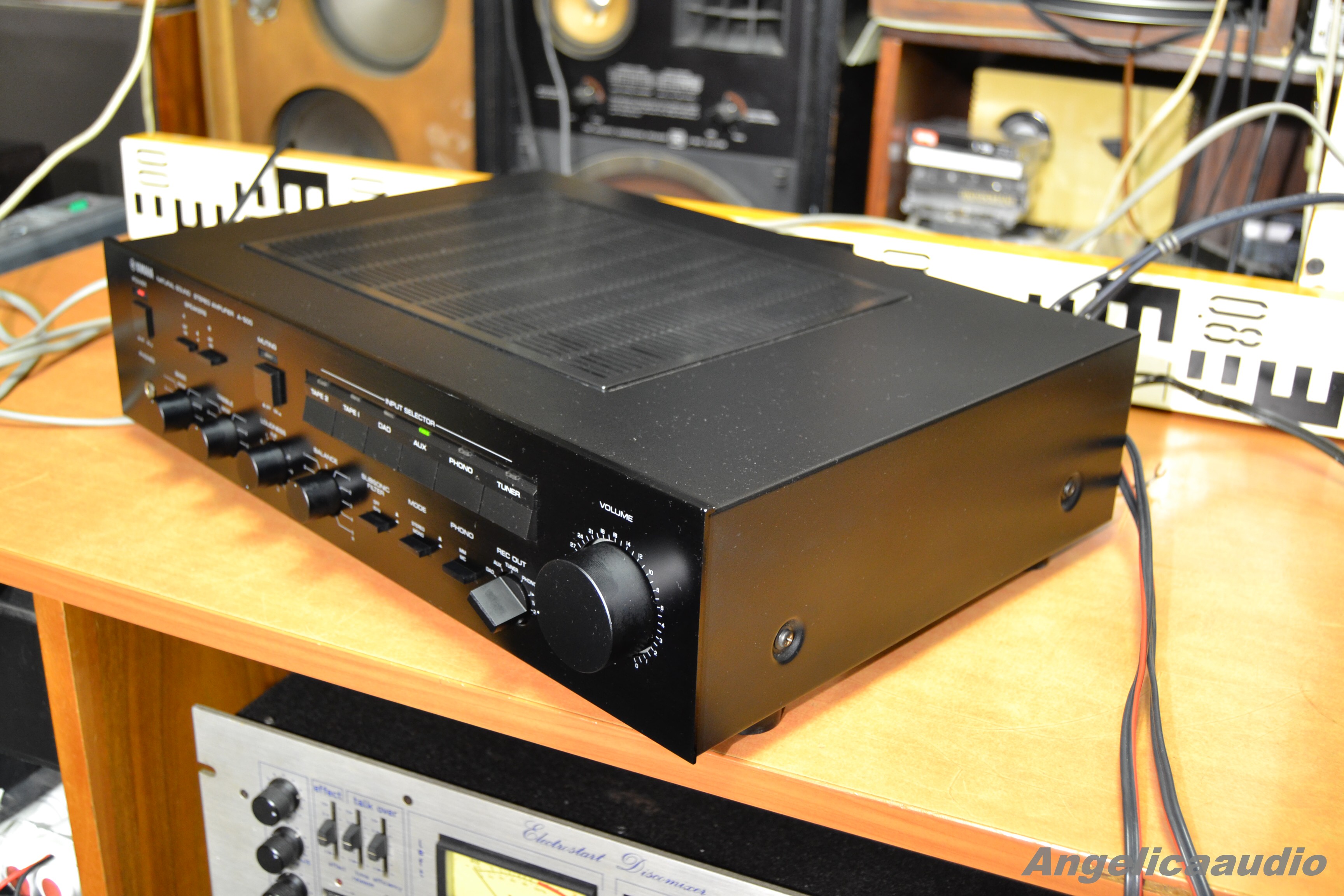

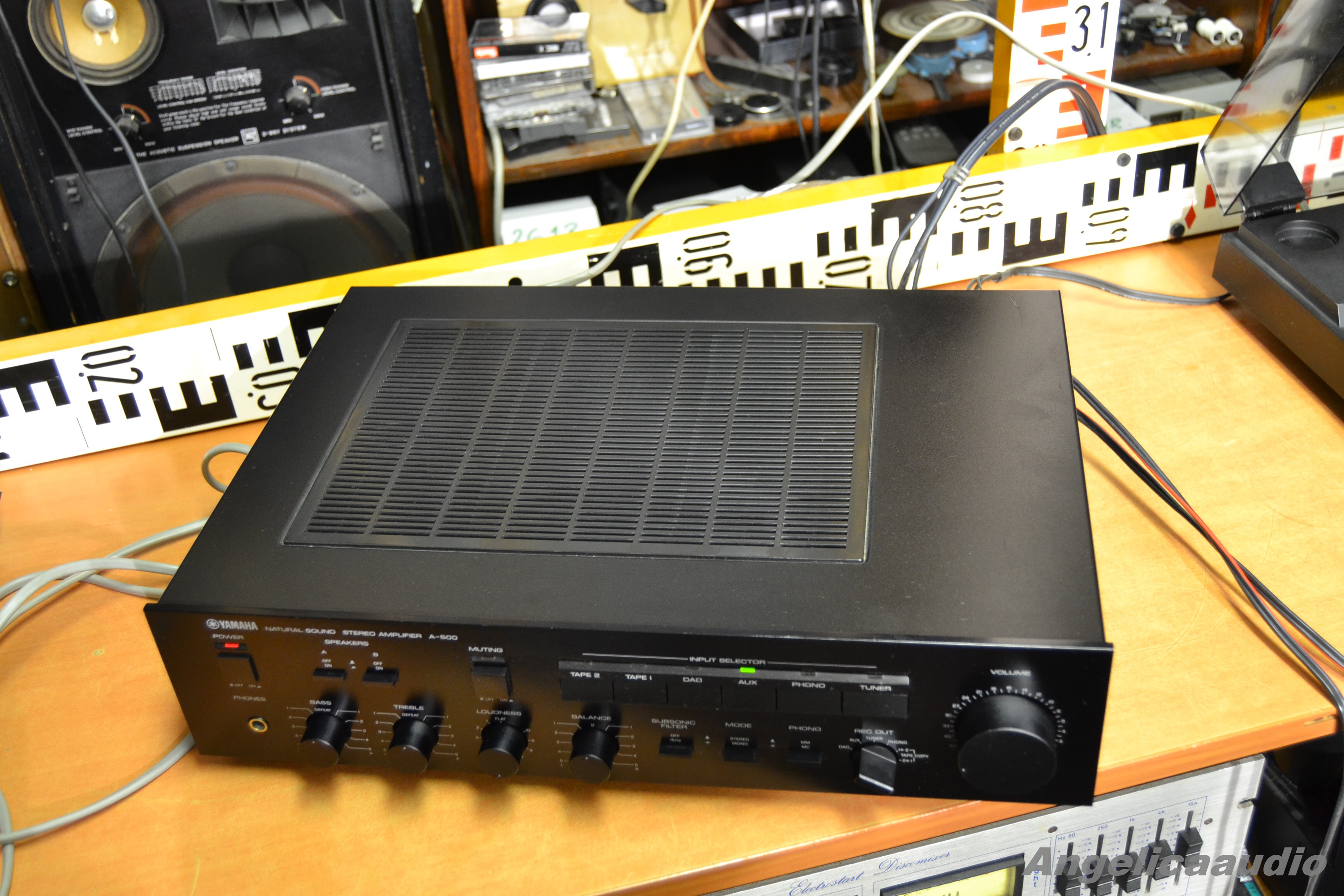

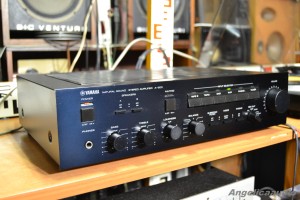

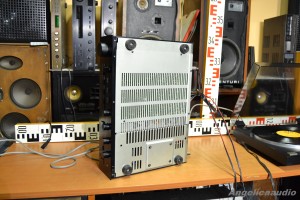

Integrated Transistor Amplifier |
| Colour: 1=Silver, 2=Black: |
1; 2 |
| Power consumption: |
380 W @ 120/240 V |
|
| Pre Amplifier |
| Inputs: |
Phono MM/MC;Tuner;Tape I+II |
| Quadro: |
no |
| Inp. Sensitivity High Level: |
150 mV |
| Inp. Impedance High Level: |
47 kΩ |
| Frequency Response High Level: |
10-10,000 (+0/-0.5 dB) HZ |
| Signal/Noise High Level: |
100 db |
| Inp. Sensitivity Phono MM: |
2.5 mV |
| Inp. Impedance Phono MM: |
47 kΩ |
| Frequency Response Phono MM: |
RIAA (±0.2 dB) |
| Signal/Noise Phono MM: |
92 db |
| Inp. Sensitivity Phono MC: |
0.16 mV |
| Inp. Impedance Phono MC: |
0.1 kΩ |
| Signal/Noise Phono MC: |
75 db |

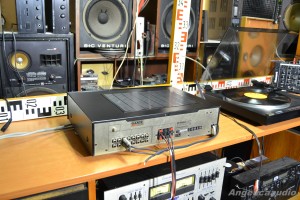

| Outputs: |
PRE OUT; LINE IN/REC; LINE OUT/PLAY |
| Harmonic Distortion: |
Phono MM-REC OUT 0.007
Phono MC-REC OUT 0.003
High Level-SP OUT 0.005 % at rated output |
| Output Voltage Rec Out: |
150 mV |
| Impedance Rec Out: |
0.47 kΩ |
|
| Equalizer |
| Tone Controls: |
Bass; Treble |
| Frequencies: |
±10 dB/20 Hz; ±10 dB/20 kHz |
| Filters: |
SUBSONIC (-12 dB/oct./15 Hz) |
| Loudness: |
-20 dB |
|
| Power Amplifier |
| Speaker Outputs: |
2 x 2 Speakers; Phones |
| Continuous Power 4Ω: |
100 + 100 Watts |
| Continuous power 8Ω: |
70 + 70 Watts |
| Damping factor: |
>50 |
|
| 2. Physical |
| Dimensions in Inches: |
17-1/8 x 4-7/16 x 12-7/8 (w) x (h) x (d) |
| Dimensions in mm: |
435 x 112 x 327 (w) x (h) x (d) |
| Weight in lbs: |
16 lbs |
| Weight in Kg: |
7.3 Kg |
|
